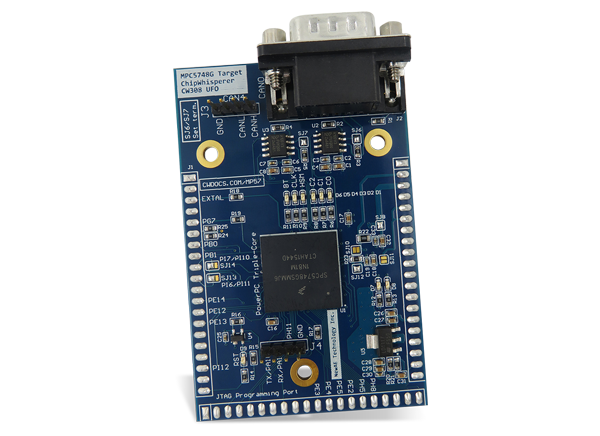

NewAE Technology MPC5748G UFO Target Board

NewAE Technology MPC5748G UFO Target Board (CW308T-MPC5748G) enables embedded security analysis testing on the NXP Semiconductor MPC5748G 32-bit MCU. UFO Target Boards are designed to mount onto the UFO Baseboard (CW308) for use with either the ChipWhisperer Pro (CW1200) or the ChipWhisperer-Lite (CW1173) Capture Tools.

The NXP MPC5748G is a triple-core PowerPC Microcontroller primarily intended for industrial and automotive applications. The MPC5748G UFO Target Board features two CAN (Controller Area Network) interfaces, a DB9 CAN BUS port, two serial ports which can be used for LIN (Local Interconnect Network), and solder jumpers for a variety of power analysis options. The NewAE Technology MPC5748G UFO Target Board is designed to use an external programmer for reflashing, as it does not include a bootloader.

Features

  • Supports NXP Semiconductors MPC5748G 32-bit MCU
  • Two CAN interfaces
  • DB9 CAN bus port
  • Two serial ports
  • Requires external programmer for reflashing
