SE Relays Plug-In Relays
SE Relays Plug-In Relays & Latching Relays include the 700 series ice cube relays, offering a wide range of contact configurations, contact ratings (3A to 20A) and cover options. Also included is the SE Relays 788 series Plug-In Relays which can handle loads up to 16A and offers a variety of mounting options. SE Relays energy-saving magnetic latching relays require no power to maintain contact closure. They include: the 755 series with an octal base, the 785 series with a square base and the 303 series using 0.25" quick-connect terminals. With a single keystroke, engineers can download 3D CAD models by simply selecting the part number to view the detail page and then selecting the 3D CAD model from the Documents tab.
Features
- Types
- 700 series ice cube relays offering a wide range of contact configurations, contact ratings (3A to20A) and cover options
- SE Relays 788 series Plug-In Relays which can handle loads up to 16A and offers a variety of mounting options
- Energy-saving magnetic latching relays require no power to maintain contact closure

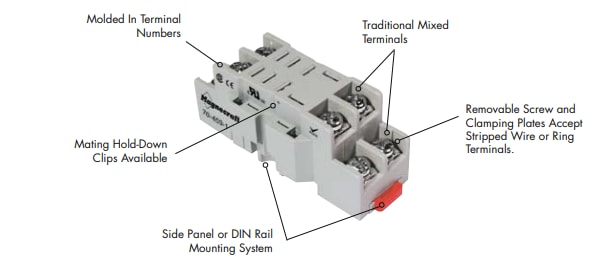

Relay Socket Diagram
View Results ( 91 ) Page
| Numéro de pièce | Description | Fiche technique |
|---|---|---|
| 782XDXH21-12D | Relais universels Herm Ice Cube Relay 4PDT, 5 Amp Rating |  |
| 70-178-2 | Matériel et supports de relais PCB Mount Socket 11-Pin w/out MntTabs | |
| 782XBXCT-12D | Relais universels 782 Ice Cube Relay DPDT, 15A, Cvr w/PCB | |
| 70-402-1 | Matériel et supports de relais PCB Mount Socket 8-Pin, PCB Term | |
| 782XBXCT-120A | Relais universels POWER RELAY DPDT 120AC, 15A, PLUG IN | |
| 16-1324 | Matériel et supports de relais HOLD DOWN CLIP | |
| 16-700ST-1 | Matériel et supports de relais ID Tags (108 pcs per sheet) | |
| 16-781C1 | Matériel et supports de relais Panel/Flange Mount Adapter for 781 Rly | |
| 782XBXC-110D | Relais universels DPDT 110V 10A | |
| 16-783C | Matériel et supports de relais DIN Rail Mounting Adapter for 783 Rly | |
Publié le: 2011-07-29
| Mis à jour le: 2022-03-11
