NXP Semiconductors LPC546xx 32-bit Cortex-M4 MCUs

NXP Semiconductors LPC546xx 32-bit Microcontrollers (MCUs) offer a rich peripheral set with very low power consumption and enhanced debug features. The LPC546xx MCU family, powered by the Arm® Cortex®-M4 core, offers Ethernet support, a TFT LCD controller, and two CAN FD modules. Designed for flexibility and performance scalability, LPC546xx MCUs provide up to 180MHz performance while retaining power-efficiency as low as 120uA/MHz. With up to 21 communication interfaces, LPC546xx MCUs are ideal for the HMI and connectivity needs of next-generation IoT applications. NXP LPC546xx 32-bit Microcontrollers are offered in TFBGA180 and LQFP208 packages

Features

  • Arm Cortex-M4 core running at a frequency of up to 180MHz
  • On-chip memory:
    • Up to 512KB on-chip flash program memory with flash accelerator and 256-byte page erase and write
    • Up to 200KB total SRAM consisting of 160KB contiguous main SRAM and an additional 32KB SRAM on the I&D buses. 8KB of SRAM bank
  • intended for USB traffic
  • 16KB of EEPROM
  • ROM API support
  • Multiple USART, SPI, and I2C serial interfaces
  • Two ISO 7816 Smart Card Interfaces with DMA support
  • USB 2.0 high-speed host/device controllers
  • USB 2.0 full-speed host/device controller with on-chip PHY and dedicated DMA controller supporting crystal-less operation in device mode
  • SPIFI with XIP feature uses up to four data lines to access off-chip SPI/DSPI/QSPI flash memory at a much higher rate than standard SPI or SSP interfaces
  • Ethernet MAC with MII/RMII interface with Audio Video Bridging (AVB) support and dedicated DMA controller
  • Two CAN FD modules with a dedicated DMA controller
  • Multiple digital peripherals including 30 channel DMA controller, LCD controller, external memory controller
  • Secured digital input/output (SD/MMC and SDIO) card interface with DMA support
  • Five 32-bit general-purpose timers/counters
  • 32-bit Real-time clock (RTC)
  • Windowed Watchdog Timer (WWDT)
  • Repetitive Interrupt Timer (RIT) for debug time stamping and for general purpose use
  • Programmable PMU (Power Management Unit) to minimize power consumption and to match requirements at different performance levels
  • Reduced power modes: sleep, deep-sleep, and deep power-down
  • Wake-up from deep-sleep modes due to activity on the USART, SPI, and I2C peripherals when operating as slaves
  • Available in TFBGA180 and LQFP208 packages

Videos

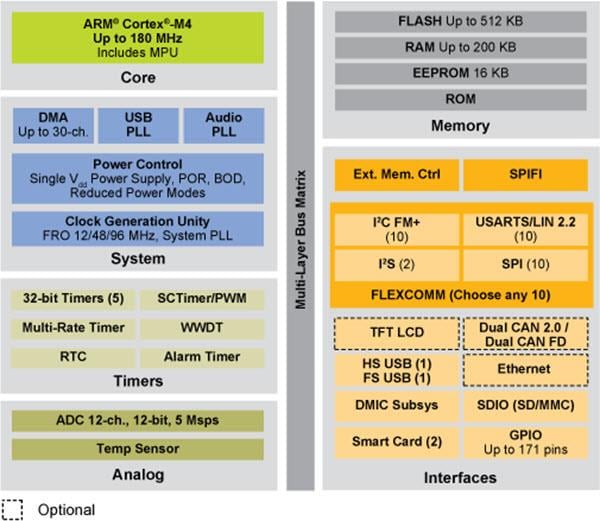

Block Diagram

Block Diagram - NXP Semiconductors LPC546xx 32-bit Cortex-M4 MCUs

Related Products

NXP Semiconductors LPC 32-bit Arm® Technology Microcontrollers

Deliver high application performance and an excellent developer experience.

Learn Moreà propos de NXP Semiconductors LPC 32-bit Arm® Technology Microcontrollers View Productslié à NXP Semiconductors LPC 32-bit Arm® Technology Microcontrollers

NXP Semiconductors Sonde de débogage de liaison avec les MCU

Carte puissante utilisable avec l’IDE MCUXpresso et compatible avec des IDE tiers.

Learn Moreà propos de NXP Semiconductors Sonde de débogage de liaison avec les MCU View Productslié à NXP Semiconductors Sonde de débogage de liaison avec les MCU

Additional Resources

View Results ( 24 ) Page
Numéro de pièce Package/Boîte Taille de la mémoire du programme Taille de la RAM de données Fiche technique
LPC54618J512BD208E LQFP-208 512 kB 200 kB LPC54618J512BD208E Fiche technique
LPC54606J512BD208K 512 kB 200 kB LPC54606J512BD208K Fiche technique
LPC54605J512ET180K 512 kB 200 kB LPC54605J512ET180K Fiche technique
LPC54605J512BD100K 512 kB 200 kB LPC54605J512BD100K Fiche technique
LPC54607J256BD208E LQFP-208 256 kB 136 kB LPC54607J256BD208E Fiche technique
LPC54616J512ET100E TFBGA-100 512 kB 200 kB LPC54616J512ET100E Fiche technique
LPC54605J256BD100E LQFP-100 256 kB 136 kB LPC54605J256BD100E Fiche technique
LPC54605J256ET180E TFBGA-180 256 kB 136 kB LPC54605J256ET180E Fiche technique
LPC54616J256ET180E TFBGA-180 256 kB 136 kB LPC54616J256ET180E Fiche technique
LPC54606J512BD100E LQFP-100 512 kB 200 kB LPC54606J512BD100E Fiche technique
